When comparing phase converter technologies, it’s important to understand how each type performs in real-world applications. Static phase converters are the simplest and least expensive option, but they only provide partial three-phase power—typically allowing a motor to start, then running on single-phase. This results in reduced horsepower, lower efficiency, and is not suitable for most modern or sensitive equipment.

Rotary phase converters improve on this by using an idler motor to generate three-phase power. While they can run multiple machines and deliver full horsepower, they are less efficient, consume power even when idle, and can produce unbalanced voltage—especially under varying loads—which may lead to excess heat and wear on equipment.

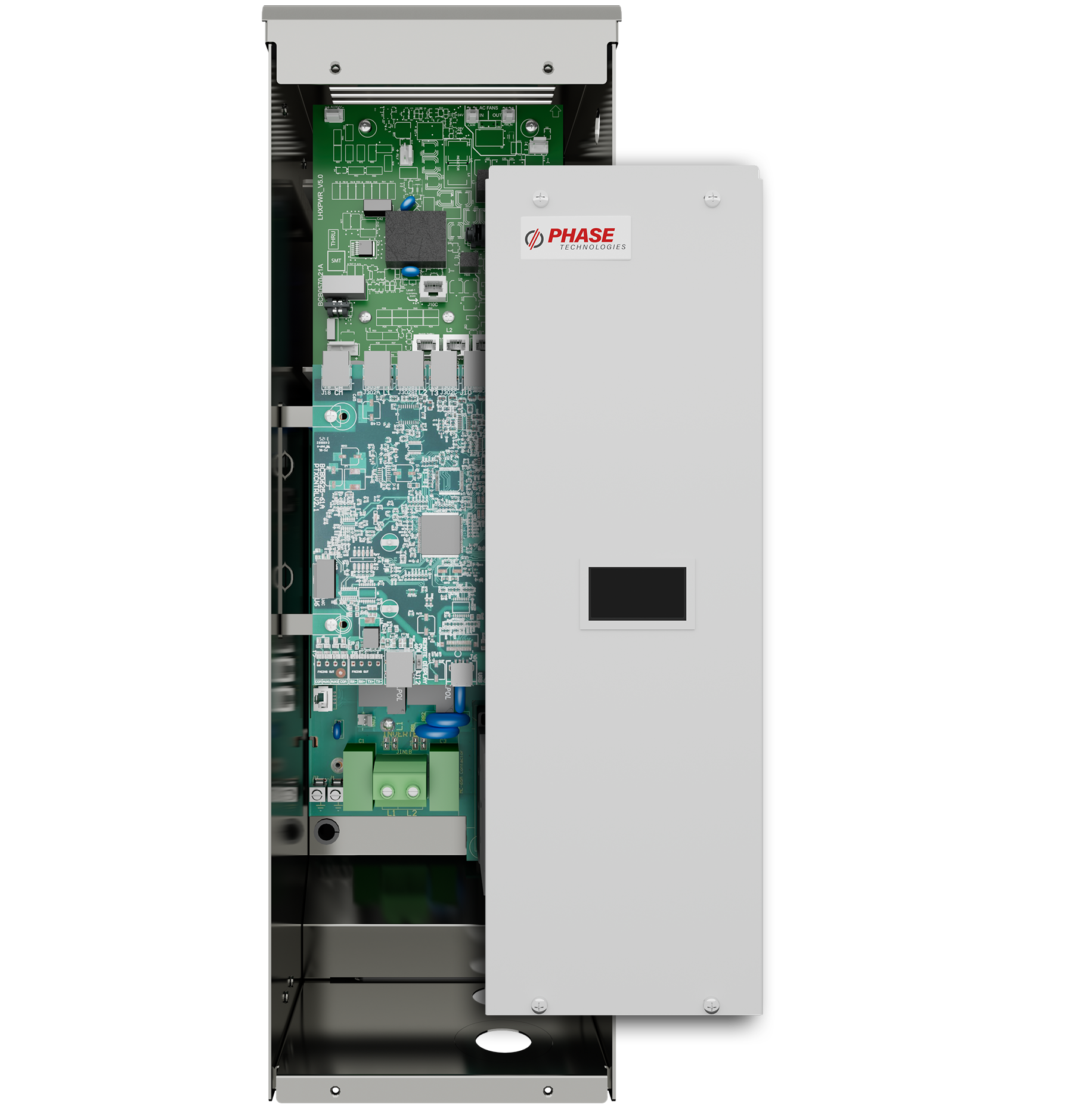

Phase Perfect Digital phase converters represent the most advanced solution. Using solid-state technology, they actively create and balance all three legs of three-phase power, delivering utility-grade performance with precise voltage control. This means your equipment runs at full capacity, with greater efficiency, lower energy costs, and improved reliability. With no moving parts, quiet operation, and the ability to handle variable and sensitive loads, Phase Perfect digital phase converters provide the highest quality power—and the best long-term value.

A digital phase converter delivers value both immediately and over the long haul. In the short term, it eliminates the need for costly utility upgrades, allowing you to access three-phase power quickly and at a fraction of the price. With fast installation and minimal infrastructure requirements, both businesses and residential property owners can get equipment up and running without long delays or major construction.

While digital phase converters can have a higher upfront cost compared to rotary converters, that initial investment quickly proves its worth. By producing clean, perfectly balanced power, they actively protect motors and equipment from voltage imbalance, overheating, and premature wear. For businesses, this means fewer breakdowns, less downtime, and avoiding expensive motor replacements. For homeowners, it means protecting valuable equipment like well pumps, HVAC systems, or shop machinery—preventing unexpected failures and costly repairs. Over the long term, that protection translates directly into savings for any user. Digital phase converters reduce energy waste, extend equipment life, and minimize maintenance costs, all while delivering consistent, reliable performance under varying loads. The result is not just upfront savings, but lasting value—making a digital phase converter a smart investment that keeps both commercial operations and residential equipment running stronger, longer.

Voltage balance and efficiency are critical to the health and performance of any three-phase equipment. When voltage is unbalanced—even by a small amount—it forces motors to work harder than they should, creating excess heat, reducing efficiency, and significantly shortening their lifespan. This added stress can lead to premature failures, costly repairs, and unexpected downtime.

Efficient, well-balanced power ensures that all three phases share the load evenly, allowing motors and equipment to run at their intended performance levels. This not only reduces energy consumption but also minimizes wear and tear, keeping operating temperatures lower and extending the life of your equipment.

In short, proper voltage balance isn’t just about power quality—it’s about protecting your investment. Better balance means better efficiency, lower operating costs, and more reliable performance day in and day out.

Phase Perfect digital phase converters offer a powerful solution when your equipment requires 460V three-phase power but only 230V single-phase service is available. Instead of investing in costly utility upgrades or additional transformers, Phase Perfect units with voltage doubling capability can step up your existing 230V supply to deliver clean, balanced 460V three-phase power—all from a single system.

This built-in voltage doubling option simplifies installation, reduces infrastructure costs, and gets your equipment running faster. Just as importantly, it maintains the same high-quality, precisely balanced power Phase Perfect is known for, ensuring your motors and equipment operate efficiently and reliably at the higher voltage.

The result is a flexible, cost-effective way to bridge the gap between available power and required power—without compromise.

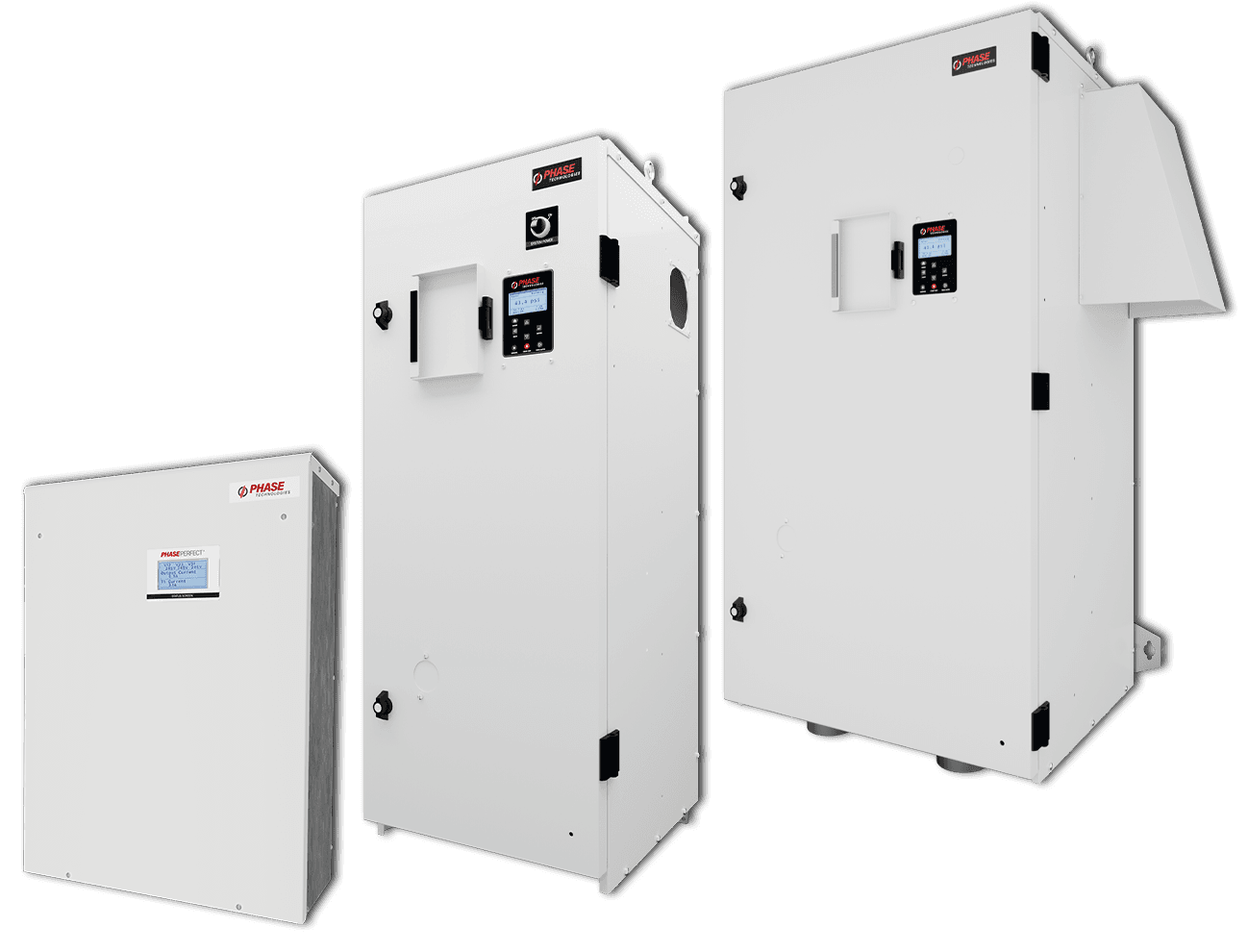

Choosing the right Phase Perfect model— Industrial or Residential—comes down to your application, environment, and horsepower (HP) requirements.

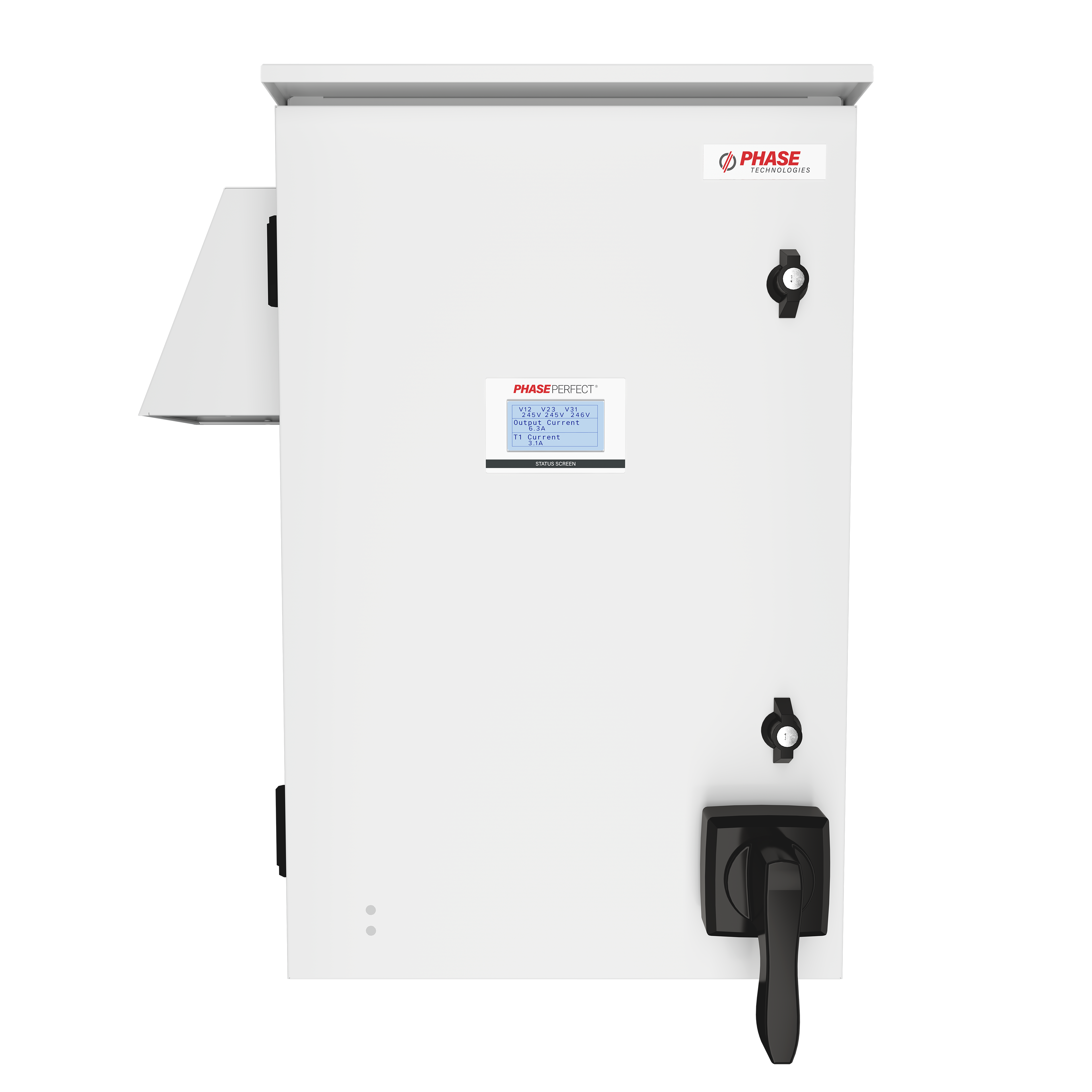

The PT Industrial Series is designed for more demanding or sensitive applications, especially where higher horsepower motors or challenging load conditions are involved. It excels in situations with large HP motors, heavy starting loads, or frequent cycling. If you're running high-HP equipment or precision machinery that requires tight voltage regulation and consistent performance, the Phase Perfect Industrial PTE (unconfigured) or PT (fully customizable) provide the added capability and stability needed.

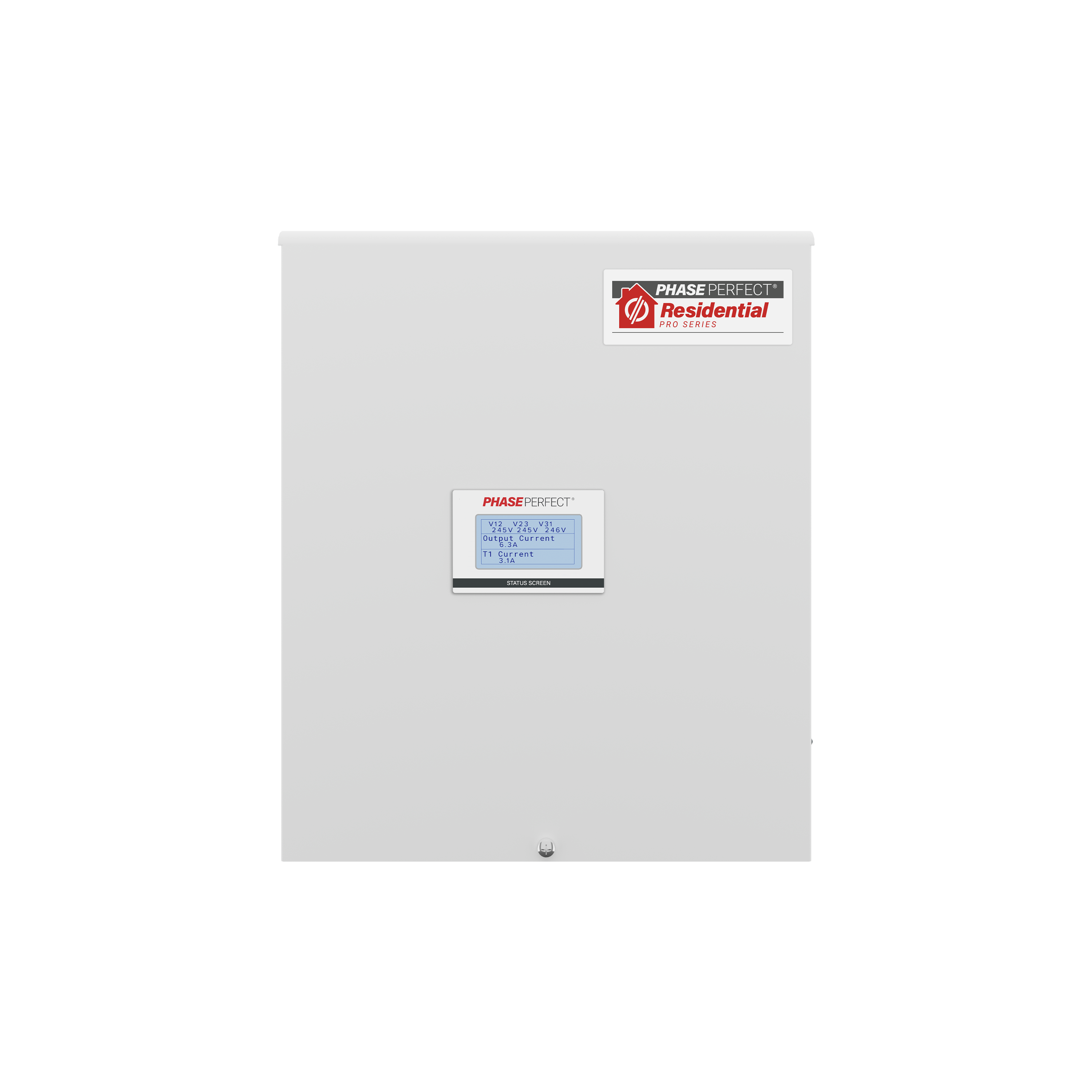

The PTR Residential Series is tailored for residential and rural applications, particularly home shops where three-phase power isn’t available. It’s ideal for lower to moderate horsepower needs—such as welders, air compressors, or machine tools in a typical home shop. The PTR offers an accessible and efficient way for homeowners to power their equipment without overbuilding for industrial-scale loads.

In short, the PTE/PT covers a wide range of standard HP applications with flexible panel shop options, the PT Industrial is best for higher horsepower and demanding loads, and the PTR is ideal for lower to moderate HP needs in residential or rural settings—making it easy to match the right converter to both your equipment and your power requirements.
