Alpha Drive
C
onstant
P
ressure
V
ariable
F
requency
D
rive
Phase Converting
Phase Converting
Constant Pressure VFD
Constant Pressure VFD
115 V & 230 V
115 V & 230 V
.5 – 5 HP
.5 – 5 HP

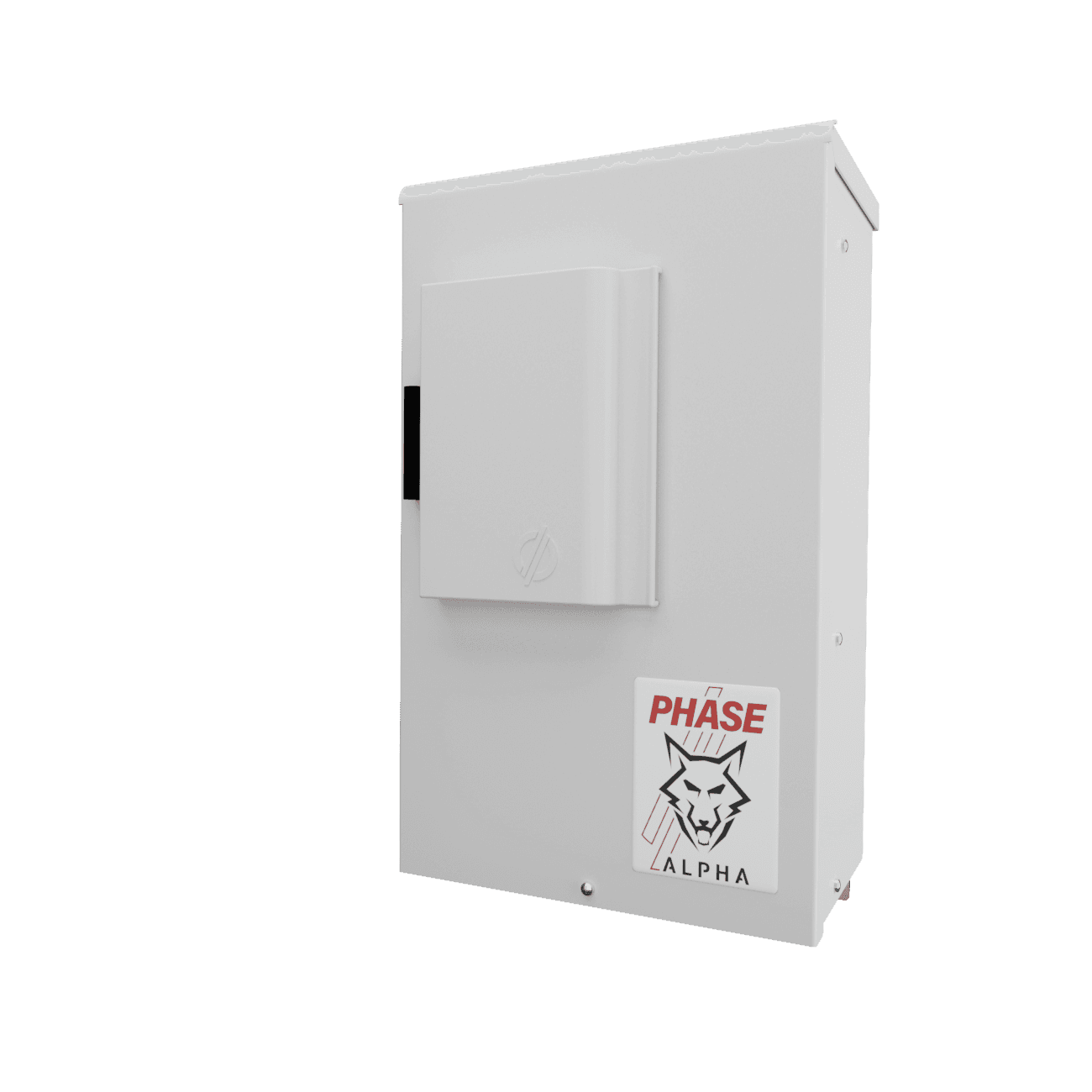

The Alpha Drive is our rugged, single-phase to three-phase converting variable frequency drive for residential and light commercial constant pressure installation. With capabilities to run 2-wire, 3-wire, and 3-phase motors, the Alpha Drive offers simple setup, rugged hardware, NEMA Type 3R enclosure, and a low noise oil-filled 0 - 150 psi pressure transducer.
Enjoy commercial VFD quality in a drive that is easy to configure for home wells, irrigation systems, motor control, and soft start applications.
Convert single-phase power to three-phase power while utilizing advanced motor control capabilities and efficiencies.
Easy Setup Wizard
Set Up Constant Pressure in Minutes
Identical Keypad & Setup Across All Models
Large Backlit Display with Intuitive Menus
Simple Messages in Clear English
The Perfect Pressure™ Easy Setup Wizard is a user-friendly tool integrated into our VFDs to simplify the configuration of constant water pressure systems. Upon initial startup, the wizard guides users through a series of prompts to establish the desired pressure settings. This streamlined process allows for quick and efficient setup, often requiring only a few minutes to complete.
Configure a pump system to deliver constant pressure with just a few button presses. After the setup wizard, validate the system and walk away knowing it will supply constant pressure no matter the demands placed on it.
Most Variable frequency drives are hard to configure. Needing to hunt through a complex manual trying to cross-reference parameters, while trying to configure them on barely readable screen was normal. Phase VFD’s still have all those parameters under the hood if you want to fine-tune a pump system, but our intuitive wizard will have you running in just a few seconds.
Try this interactive Perfect Pressure™ Wizard to see how easy it is!
On start, use the arrows to toggle to "Run Constant Pressure Wizard?" - Press the ENTER key to proceed.
Set the psi range of the 4-20mA sensor. Default is 150psi. Press ENTER to proceed.
Determines the pressure you want to maintain. The factory default is 50 psi. Use the arrow keys to change if desired. Press ENTER to proceed.
This parameter sets the ramp profile for a submersible pump. "YES" = ramps to 30HZ in the first second to prevent excessive wear on the thrust bearing. "NO" = The frequency will increase in a linear fashion from zero to max frequency. Use the arrow keys to toggle between the two settings. Press ENTER to proceed.
The "Yes" value allows you to disable the MANUAL button run mode. "No" allows you to run the VFD manually on/off at max frequency.
Setting for motor overload protection (service factor amp rating for the motor) using the arrows to toggle. Press ENTER to proceed.
Press the RUN/AUTO button to start the pump.
Click Enter!
9.1
Yes (Enter)
No (Back)
The Alpha Drive is a rugged, high-performance variable frequency drive built for long-lasting durability and superior efficiency. Designed to reset the industry standard in residential VFDs, the Alpha Drive will feature:
55°C (131°F) Temperature Rating
2x Overload Capacity Compared to the Competition
2x Input Hardware Voltage Rating Compared to the Competition
- Handles Over 1,200 Volts of Peak-to-Peak Voltage
Standard EMI Choke Included
- Reduces Light Flickering and Interference with Other Electronics
Standard Output Reactor Included
- Designed for Running Single-Phase Motors
Consumer Confidence Warranty
Phase Technologies backs the Alpha Drive with a three-year warranty, including one-year no-questions-asked, ensuring reliability and hassle-free support for ultimate peace of mind.
